應上海市某AI服務商邀請，泰鉑科技為其AI算力中心定制了積木式AI算力熱管理液冷模塊的應用方案。

Upon request from a leading AI service provider in Shanghai, Taybo developed a bespoke modular liquid cooling solution for thermal management in its AI computing infrastructure.

This project is an AI training server thermal management solution. As required by the client, each AI server rack has a thermal load of 20kW, with a total of 40 server racks deployed, resulting in a combined thermal load of 800kW. Currently, TechPro's AI computing thermal management liquid cooling module supports a maximum heat dissipation capacity of 120kW per server rack.

The project site is situated in Shanghai, characterized by summer (July-August) wet-bulb temperatures ranging between 28-30°C and a historical maximum of 31°C. Recorded extreme temperatures include 39.4°C in summer and -10.1°C in winter.

Hardware Component Operating Temperature

AI服務器的整體工作允許溫度60℃，為保證設備高效運行，控制溫度在55℃以下。

AI servers are designed to operate up to 60℃, but a sustained temperature ≤55℃ is recommended to maintain computational efficiency and extend hardware lifespan.

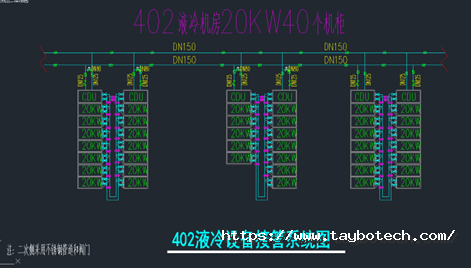

采用泰鉑科技積木式AI算力熱管理液冷模塊，室外冷源1.5倍冗余設計。設計方案如下圖所示：

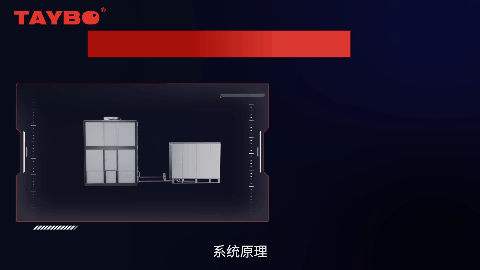

The solution utilizes Taybo's modular AI computing thermal management liquid cooling modules, with a 1.5x redundant outdoor cooling source design. The detailed system design is shown in the following diagram:

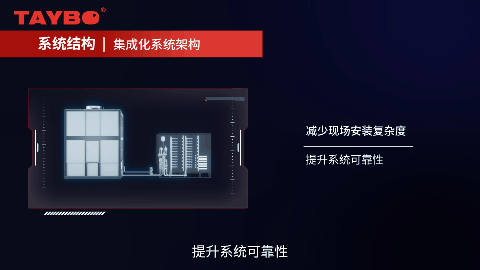

項目共設置3臺冷卻塔（每個冷卻塔額定散熱量400kW），搭配6組CDU，一組CDU搭配5-7個AI服務器液冷機柜，UPS單元單獨設置。一體化整合CTS + CDU + PDU等設備，減少現場安裝復雜度，提升系統可靠性。其中冷卻塔采用316不銹鋼一體化彎折工藝，耐腐蝕、抗嚴寒，適應極端氣候環境，智能控制系統優化水、電消耗，實現高效節能運行。本項目系統通過精確的控制冷卻液的流速、溫度和壓力，PUE低至1.03，顯著降低數據中心運營成本。通過隔離TCS和SCS回路，減少交叉污染和泄漏風險，提高系統的整體可靠性。

The project deploys 3 cooling towers (each rated at 400kW heat dissipation capacity), paired with 6 CDUs (Cooling Distribution Units). Each CDU supports 5-7 AI server liquid-cooled racks, with UPS units configured separately. The system features integrated CTS (Cooling Tower System) + CDU + PDU (Power Distribution Unit), reducing on-site installation complexity and enhancing overall reliability. The cooling towers utilize 316 stainless steel with seamless bending technology, offering corrosion resistance and extreme cold tolerance for harsh climates. An intelligent control system optimizes water and power consumption, ensuring energy-efficient operation. The system achieves a PUE as low as 1.03 through precise control of coolant flow rate, temperature, and pressure, significantly reducing data center operational costs. By isolating the TCS (Tertiary Cooling System) and SCS (Secondary Cooling System), the design minimizes cross-contamination and leakage risks, improving overall system reliability.

溫度論證：AI服務器側供液最高溫度40℃與服務器運行溫差最小15℃，滿足散熱需求。上海市室外濕球溫度最高約為31℃，與一次側載冷劑溫差5℃，滿足換熱需求。高效板換對流換熱，換熱溫差僅為2-3℃。因此，本項目配置滿足AI算力需求，且在滿足冗余的情況下最大限度的節能。

Thermal Performance Verification: The maximum supply coolant temperature for AI servers is 40℃, with a minimum 15℃ temperature differential from server operating temperatures, ensuring effective heat removal. Shanghai’s peak wet-bulb temperature reaches 31℃, maintained at a 5℃ differential from the primary coolant, meeting heat exchange requirements. The high-efficiency plate heat exchanger achieves a 2-3℃ temperature differential during convective heat transfer, optimizing energy efficiency. So,The system design meets AI computing thermal demands while balancing redundancy and energy-saving optimization.
